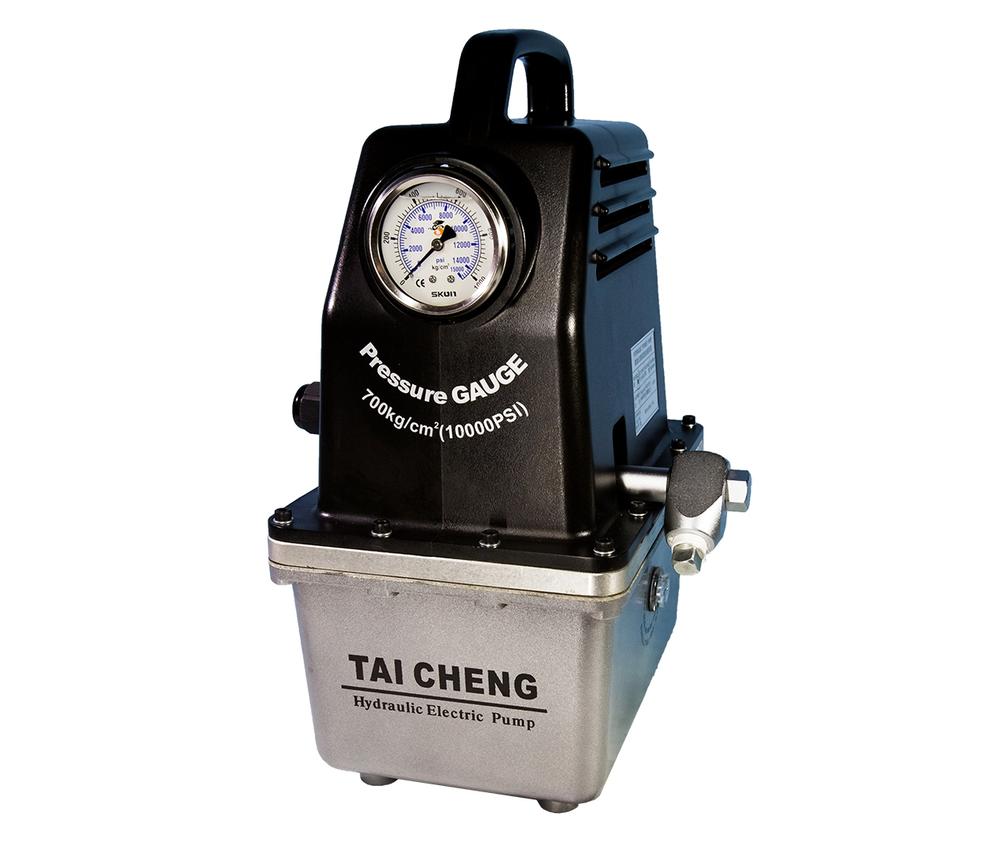

Single-Action Power Pump (CTE-25AS)
Description
Item: CTE-25AS
Max. Output Pressure:700Kg/cm²(10000psi)
Output Pressure(kg/cm)²:Low 0-20; High 20-700
Output Oil(L/min):Low 2.6; Hight 0.32
Motor(kw):1
Oil storage(cc):2700
Weight(kg):14.8
Size:LxWxH(mm):235x255x410
High-pressure hydraulic power pump, accompanied with a variety of single-hole hydraulic tools, driven by a motor at high speed two-section high and low pressure quickly out of oil, the maximum output pressure 700kgf/cm² (10000psi).
◆Electric hydraulic pump oil provide quickly, saving time and effort high efficiency.
◆With bottom switch JOG control.
◆With the high-pressure oil guage to read the working pressure valve, to avoid overloading.
◆With 2M high pressure hose, 360 degree rotation direction.
◆Applied voltage 110V (220V motor is also provided).
◆Oil storage capacity, suitable for oil: R32 special circle oil.
